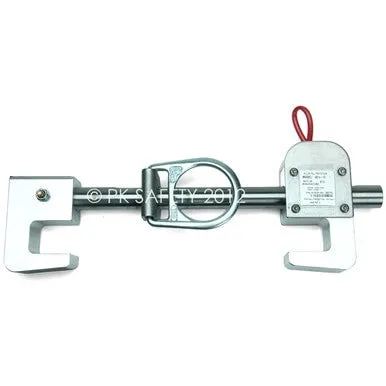

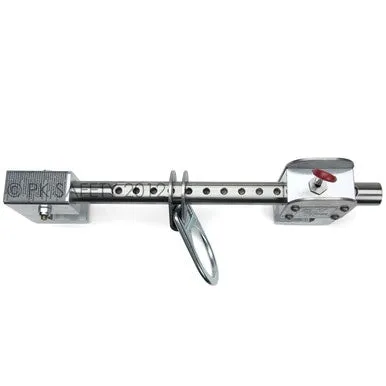

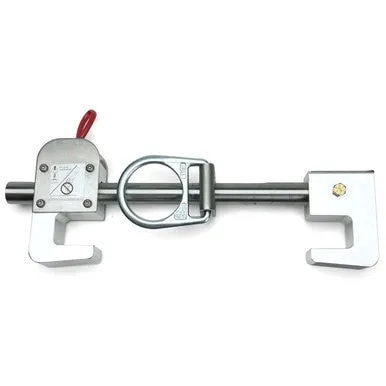

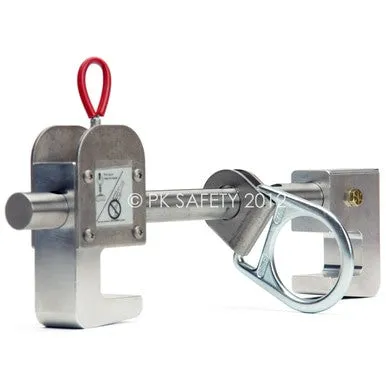

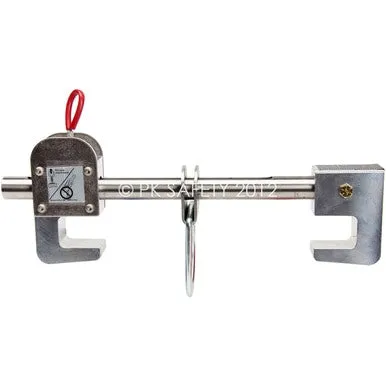

The adjustable Beam Anchor 8814-12 from Miller is designed to provide a fall protection anchorage point on I- and W-beams. The Miller anchor can adjust to fit beams ranging from 4 in. to 12 in. wide with a flange thickness of up to 1-1/4 in. Once attached, the 8814-12 Beam Anchor can travel along the length of the beam as the worker moves across the work site. This anchor has a maximum weight capacity of 310 lbs. for the worker plus tools. This fall protection anchor is made of aluminum and stainless steel. The D-ring attachment is made of drop-forged steel and stainless. The unit meets current US standards for fall protection including ANSI A10.14, Z359.1 and OSHA 1926.502 and has a minimum strength of 5,000 lbs.

Total Weight: 6.8 lbs.

Part Number:
8814-12/
